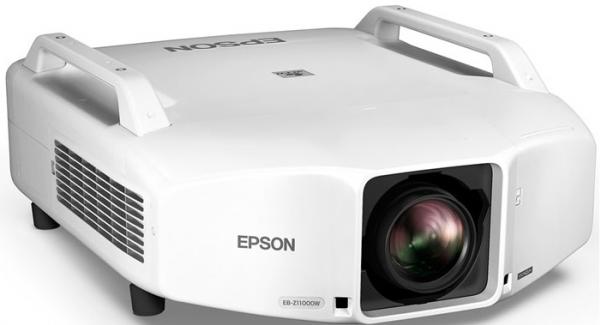

MODEL NUMBER

EB-Z11000W

Projection Technology

RGB liquid crystal shutter projection system (3LCD)

Specifications of Main Parts

LCD:

Size

1.03” wide panel with MLA (D8, C² Fine)

Native Resolution

WXGA (1280 x 800)

Projection Lens:

Type

Power Zoom / Power Focus / Power Shift

F-Number

1.65 - 2.51

Focal Length

36.00 - 57.35 mm

Zoom Ratio

1 - 1.61

Throw Ratio

1.57 - 2.56 (Wide - Tele)

Lens Exchange

Yes (7 Optional Lenses)

Lens Shift:

Mode

Powered

Vertical (Up/Down)

±60% (H Center) (Manual)

Horizontal (Left/Right)

±18% (V Center) (Manual) ±19

Type

Standard Lamp

380W UHE x 2

Portrait Lamp

304W UHE x 2

Life (Normal / Eco)*¹

Standard Lamp

2,000 hours / 4,000 hours

Portrait Lamp

1,000 hours

Screen Size (Projected Distance)

Zoom: Wide

60” - 500” [1.99 - 17.17 m]

Zoom: Tele

60” - 500” [3.26 - 27.77 m]

Standard size

100” screen 3.37 - 5.49 m

Brightness*² (2 Lamp Mode)

White Light Output (Normal/Eco)

11,000lm / 7,100lm

Colour Light Output

11,000lm

Portrait Mode

8,100lm

Brightness*2 (1 Lamp Mode)

White Light Output (Normal / Eco)

5,500lm / 3,550lm

Colour Light Output

5,500lm

Portrait Mode

4,050lm

Contrast Ratio

15,000:1

Geometric Correction

Keystone Correction

Vertical / Horizontal

±30° / ±30° (Zoom: Tele) (with Standard Zoom Lens)

Quick Corner

Yes

Curved Surface

Yes

Point Correction

Yes

Corner Wall

Yes

Connectivity

Analog Input

D-Sub 15 pin

1 (Blue)

5BNC

1

Component

5BNC, D-Sub 15pin x 1 (Blue) (common with Analog RGB connector)

Composite

1-BNC

S-Video

1 Mini DIN

Digital Input

HDMI

1 (HDCP Supported)

DVI-D

1

HDBASE-T (RX)

1 (RJ45)

Output Terminal

D-Sub 15 pin

1 (Black)

Others

USB TYPE A

1 (For ELPAP07 Wireless Adapter Only)

USB TYPE B

1 Mini USB (For Service Only)

Control I/O

RS-232C

D-sub 9pin x 1

Network

Remote Control Input

Stereo Mini-jack x 1

Wired Lan

RJ45 x 1 (100Mbps)

Wireless

Optional (ELPAP07)

Wireless Specifications

Supported Speed For Each Mode

IEEE 802.11b: 11Mbps*³, IEEE 802.11g: 54Mbps*³, IEEE 802.11n: 130Mbps*³

Wireless LAN Security

 WPA-PSK (TKIP/AES) / WPA2-PSK (TKIP/AES)

Operating Temperature

0 - 50 °C ( 20% - 80% humidity, unfrozen )
Thermal Shut Down > Normal1 50°C (122°F), ECO & Normal2 55°C (131°F)

Operating Altitude

0 - 3,048 m (over 1,500m / 4,921ft: with high altitude mode)

Direct Power On / Off

Yes

Start-Up Period

About 20 seconds, Warm-up Period: 30 seconds

Cool Down Period

Instant Off or 0 second

Air Filter

Type

High Efficiency Filter

Maintenance Cycle

10,000 hours ^*4

Power Supply Voltage

100 - 240 V AC +/- 10%, 50/60 Hz

Power Consumption (220 - 240V)

Lamp On (Normal / Eco)

1060W / 788W

Standyby (Network On / Off)

2.9W / 0.37W

Dimension Excluding Feet (D X W X H)

741 x 534 x 197 mm (not including foot and projection lens)

Weight

26kg

Fan Noise (Normal / Eco)

40dB / 35dB
